Cutting Accessories

Our CNC cutting machines come with a range of cutting accessories to make the cutting operation more efficient.

1.Powder spraying lineation device
As one of the cutting accessories, it sprays zinc powder on the steel plate, leaving an irremovable 1.5-2 mm wide line for marking and positioning purposes.

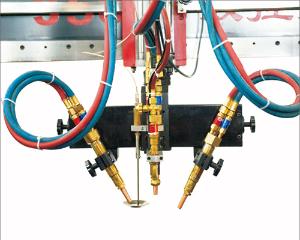

2.Linear three cutting torch device
This cutting machine accessory is used for cutting V-type, Y-type, X-type, and K-type bevels with a angle range of ±45°. The thickness range is 16-50 mm, and the angle error range is ±5°.

3.Automated igniting device
Horizontal-output transformer is used to achieve automated igniting function of the flame cutting torches. The igniter comes with a flame arrestor which can stop the flame from burning back up into the equipment.

4. Anti-collision device
Among all of the cutting accessories, this device is the only one that can effectively prevent the collision between cutting torch and workpiece. It is sensitive, quick, and reliable.

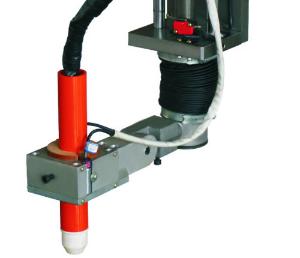

5. Capacitive automated height controller
The height controller is used for keeping cutting nozzle at a certain distance from steel plate to improve the cutting performance. Additionally, it is also in charge of lifting the cutting torch after the preheating and before the turning on of cutting oxygen. So the slag won’t jam the nozzle when the cutting oxygen supply is started.

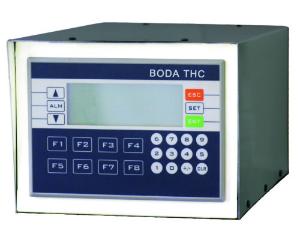

6. Arc voltage automated height controller
Just like the metal cutting component mentioned in paragraph 5, this controller is mainly used in the plasma cutting operation. An arc sensor is used to monitor the real-time arc voltage between the cutting nozzle and the target steel plate. Accordingly the height controller drives the elevator mechanism on uneven steel plate to keep a certain distance between target steel plate and cutting torch. Thus consistent cutting performance can be achieved.
