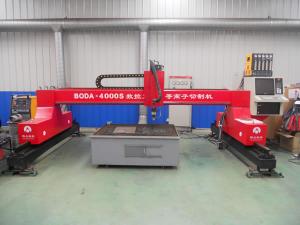

CNC Precision Plasma Cutting Machine

Description
The CNC precision plasma cutting machine comes with high precision CNC machine tool and the most sophisticated laser class plasma power in the world. Its cutting precision is about twice higher than normal plasma cutting machine, while its cutting speed is faster than the laser cutting machine when conducting the medium thick or thick plates cutting operations. However, a CNC precision plasma cutting machine can cut much thicker plates that a laser cutting machine can, while the capital needed and the operating cost are only 1/4-1/10 of that cost by a laser cutting machine.

Additionally, this machine has been specially designed to optimize its precision as possible as we can. Thus far, this product has been exported to a number of countries, such as America,Russia, New Zealand, Brazil,Singapore, Australia, South Africa, Saudi Arabia,Chile, and so on. Because of its low maintenance rate, this precision plasma cutter has been appreciated by our distribution agents both at home and abroad. The agents are getting an increasing number of orders. This CNC precision plasma cutting machine is mainly used for sheet metal processing and the manufacturing of agricultural machinery, aerospace equipment, precision machinery, automobile and so on.

Feature

1. The cutting torch holder has been awarded the certificate of "National appearance design patent".

2. Our CNC precision plasma cutting machine has been awarded the "hi-tech product of Jiangsu province" certificate.



3. Precise cutting operation.

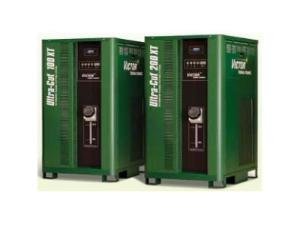

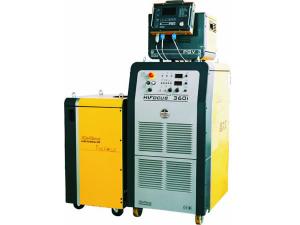

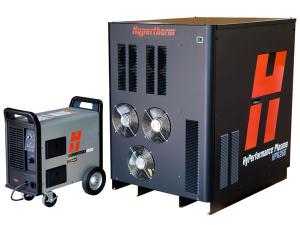

The plasma powers from a range of famous brands, such as American Hypertherm, Victor, Kaliburn, Germany Kjellberg, are available. The cutting edge is quite smooth (Ra≤12.5), and the cutting edge perpendicularity is equal to or less than 2°. The kerf width is about half of normal plasma cutting’s. The overall cutting edge performance has reached the lower limit for the laser cutting edges, saving clients much material and time. Comparing with normal plasma cutting machine our CNC precision plasma cutting machine can meet higher requirements for perpendicularity, smoothness, precision and so on.

4. Lower cutting cost.
The laser class plasma power’s electrode and nozzle have 5-7 times longer service lives than normal plasma power does. Thus the cutting cost and maintenance fee of the CNC plasma cutting unit are both saved to a great extend.

5. Great height controller.
This device can protect workers’ eyesight against arc light. Besides, it can also automatically and continuously adjust the height of the cutting torch above an uneven steel plate to maintain a constant distance between the cutting torch and the plate. Thus the collision between the nozzle and steel plate will be avoided. Cutting operation can be conducted continuously, consumable items reduced and productivity enhanced. Ultimately, the cutting performance is improved.

6. Improved structure design.
We adopt first-class special design, wider moving station and imported linear guide with “L-type super-position techniques” installation way to make the running more stable and ensure the high precision of precision plasma or laser class plasma. The minimum vertical degree can be controlled within 1°, and this precision represents the highest level in China.






7. Imported nesting software.

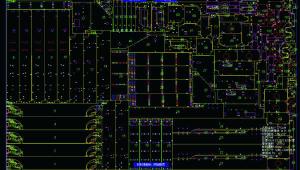

We use Fast CAM software (an Australian CAM nesting software) for automatic plate nesting. Then the steel and consumable materials can be largely saved, and the productivity will be enhanced. Different kinds of cutting technique such as automatic common edge cutting, automatic bridge cutting and automatic chain cutting are all available. The software of our CNC precision plasma cutting machine has multi-languages (optional) interfaces. You can choose Chinese (simplified), English, Russian, Spanish, Romanian, Korean, Germany, Portuguese, Polish, Slovak and Traditional Chinese.

Machine parameter
Transverse rail interval 2500-9500 mm
Effective cutting width 1500-8500 mm
Drive method Double sided AC servo motor; Rack and pinion transmission system
Effective cutting length 3000 mm less than the rail length
Idle running speed ≤12000mm/min
Cutting speed ≤6000mm/min
CNC system Imported CNC system
Plasma system Imported plasma system
Cutting torch number Customizable
Minimum cutting torch interval 200 mm
Cutting thickness According to the different plasma

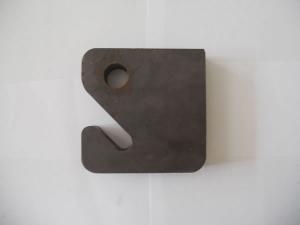

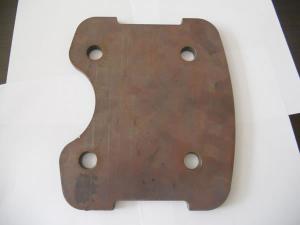

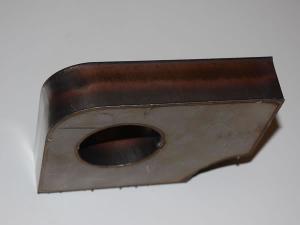

Cutting sample
