Description

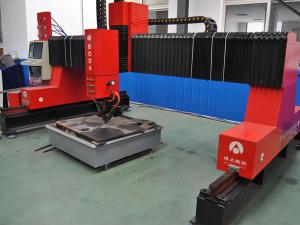

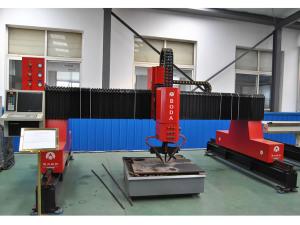

The unlimited rotary flame cutting machine is suitable for cutting V-type bevel linearly or in curve combination shapes. The cutting angle can be adjusted manually at a range from -45° to 45° to meet the welding demands for the bevel shapes. This cutting machine is typically for the bevel cutting of carbon steel plates with a thickness from 6 mm to 35 mm. The unique three cutting torch structure can achieve unlimited rotation of the cutter head, facilitating the cutting program design remarkably.
The unlimited rotary flame cutting machine is widely used for the manufacturing of high-pressure container, chemical equipment, environmental protection equipment, petrochemical machine, ship, automobile, mining machinery, coal processing equipment, and so on.
Feature
1. The cutting torch holder has been awarded the certificate of "National appearance design patent".

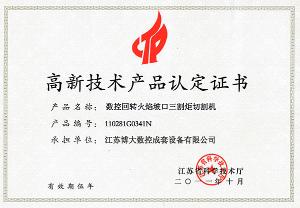

2. The unlimited rotary flame cutting machine has been awarded the "hi-tech product of Jiangsu province" certificate.

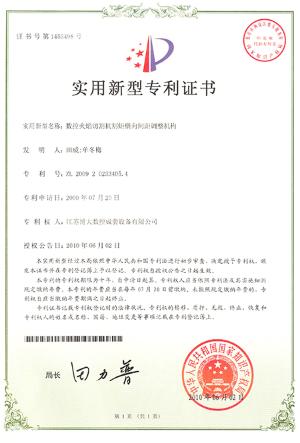

3. Our transverse distance adjustment has got the "utility model patent certificate of China".

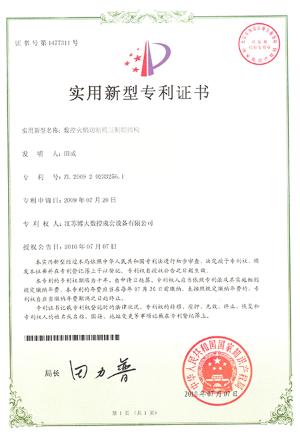

4. The three-cutting torch structure have been got the "utility model patent certificate of China".

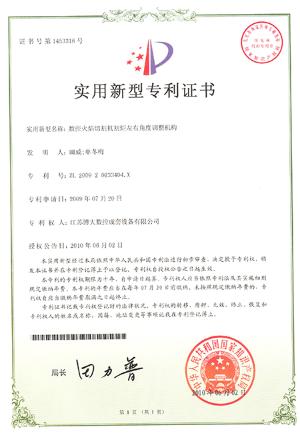

5. The left and right angle adjustment has been awarded the "utility model patent certificate of China".
6. Stable and reliable imported control system.

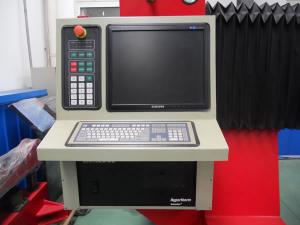

The control system of the unlimited rotary flame cutter is purchased from American Hypertherm Group. It is developed on the basis of the famous Windows interface. The operation is quite simple, just like using your PC. We have been using this system for years. According to our clients’ feedback, the system’s reliability is quite amazing, making the system suitable for workers with various operating habits.

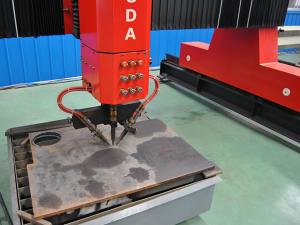

7. Three cutting torch swiveling head.
It is developed on our own and comprises four channel high pressure oxygen converter, gas control solenoid valve set, swiveling three cutting torch main structure and flame cutting torch. So the flame cutting equipment can cut V-type bevel linearly or in curve combination shapes.
8. Precise height control system.
Height sensors are used in the height controller of the unlimited rotary flame cutting machine. The cutting torch can keep consistent distance from steel plate, ensuring that the fluctuation of steel plate won’t impact the cutting performance. So the cases that cutting torches hit the steel plates will also be avoided, extending the cutting torches’ service life.

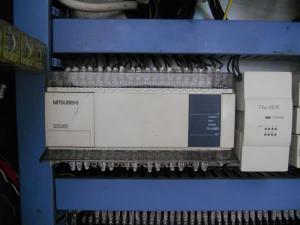

9. Mitsubishi PLC.
Mitsubishi is one of the leaders in the small PLC industry. The PLC is the logic control center—all the logic signals are processed by it. Additionally, we have more than 10 years of cutting control experience. The PLC of our unlimited rotary flame cutting machine has complete functions for various cutting techniques, and signal disturbance also can be avoided.
10. Dust cover design.
The dust cover on the cross beam can avoid the linear rail being contaminated by dust and other small particles in the air.
| Transverse rail interval | 4500-9500 mm |
| Effective cutting width | 3000-8000 mm |
| Drive method | double sided AC servo motor; Rack and pinion transmission system |
| Effective cutting length | 3000 mm less than the rail length |
| Idle running speed | ≤12000 mm/min |
| Cutting speed | 100 mm/min-750mm/min |
| CNC system | Imported CNC system |
| Bevel angle | ±45° |
| Cutting torch number | 1 |
| Cutting thickness | 6-35 mm |

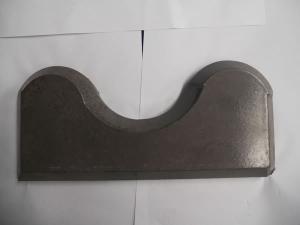

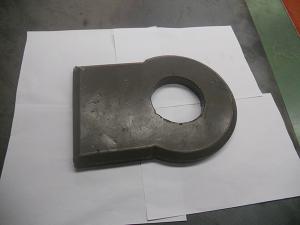

Cutting sample
